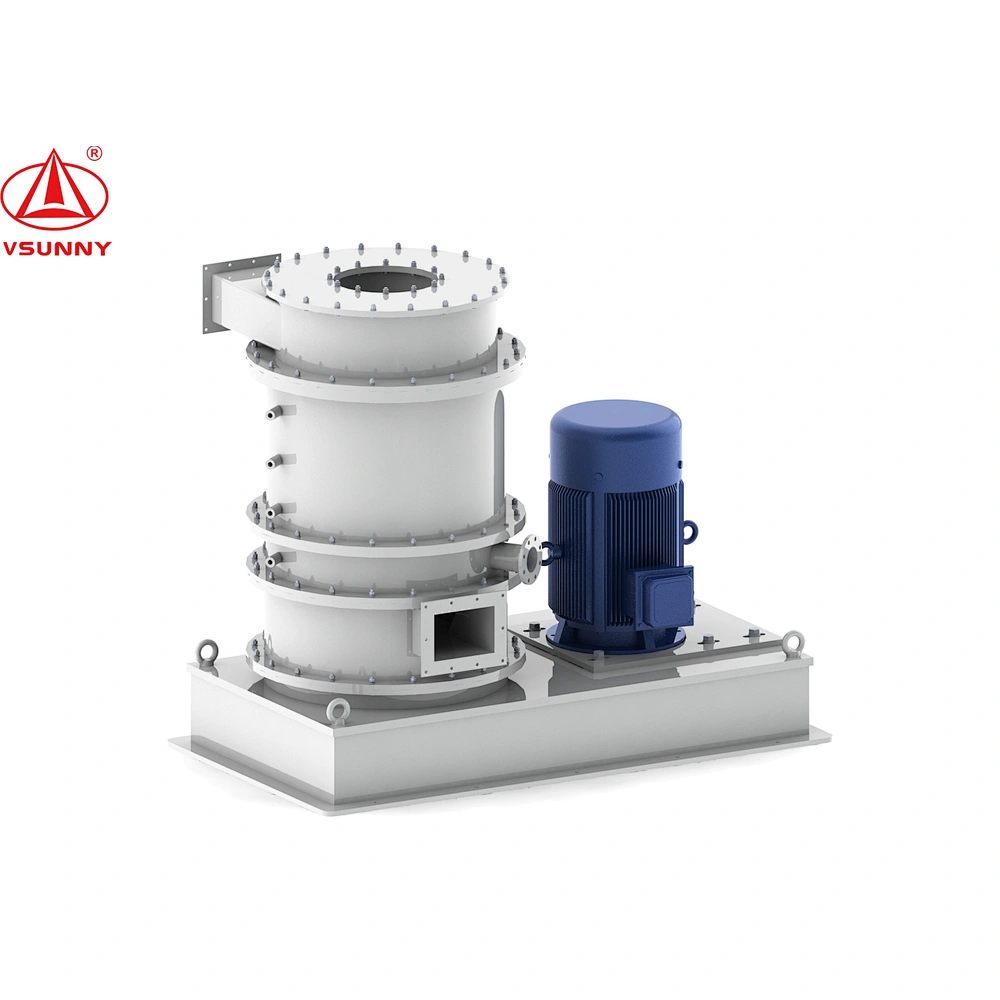

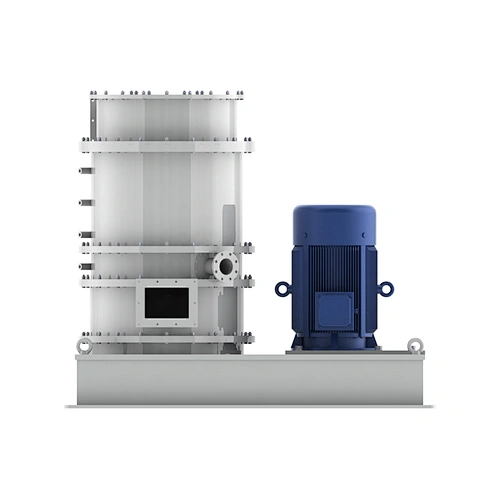

VSCM SERIES CELL MILL
VS SERIES CELL MILL
VSFCM series cell mill is a high-efficiency mill developed by Dongguan Vsunny Machinery Co., Ltd. based on British technology and years of powder production experience, which is specially designed for the production of ultra-fine powder with strict particle size distribution control. It integrates powder drying, grinding, dispersion, de-agglomeration, chemical modification and classifying treatment together.
Quantity
- Introduction
The main machine is composed of de-agglomeration system, product discharge, air inlet, classifier, feed inlet, multi-channel additives inlet and feeding unit. De-agglomeration system is the core component, which is composed of an airflow chamber, a drying chamber, a grinding chamber and a mixing chamber. The main grinding element is a vertically-mounted multi-stage rotor, in which each layer consists of up to 180 blades clamped between two support discs mounted on the central hub. According to the degree of grinding, there are 7 rotor layers in the mill with 1,260 blades. In the area within 3 mm from the grinding track, the grinding blades rotate at a speed of 120 meters per second, and the track layer is a unique static liner with bones. The interaction between the blades and the liners creates up to 1,400 turbulent"cells"in which the combined forces of impact, shear and friction rapidly produce ultra-fine powders.
